U2307A

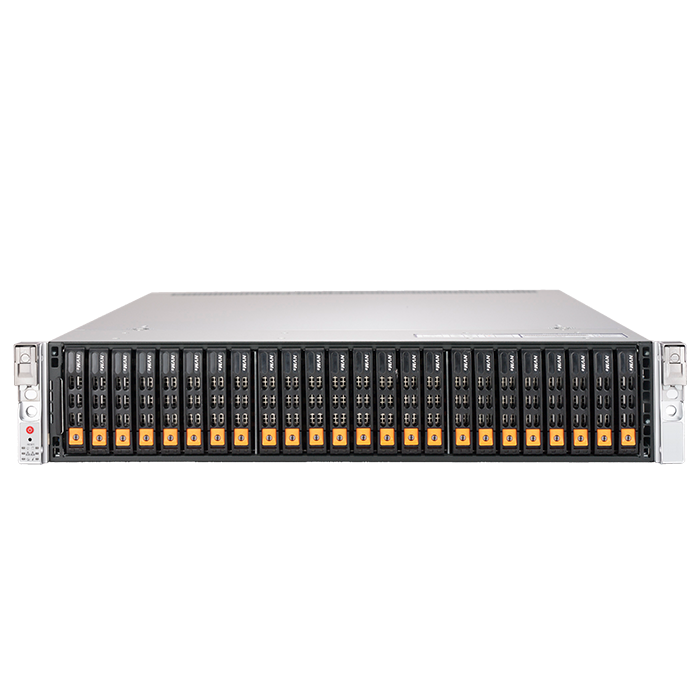

UHOP U2307A Product Overview

The UHOP U2307A features AMD EPYC™ 7000 series processors, leveraging a cutting-edge SoC architecture to deliver exceptional computational performance, superior memory bandwidth, and highly efficient I/O capabilities. This server supports up to 24 hot-swappable 2.5-inch NVMe SSDs, with each drive offering speeds of up to 32Gbps. It significantly accelerates core business processes and enhances workload efficiency for enterprises.

Application Scenarios

  • Virtualization
  • Cloud Computing
  • High-End Enterprise Servers
  • Hyper-Converged Storage

Key Advantages of AMD EPYC Architecture

  • Supports up to 64 cores and 128 threads per server, offering a 14% performance boost compared to similar X86 processors.
  • Maximum TDP of 180W per processor, achieving 14% better energy efficiency and a greener operation.
  • Equipped with 16 memory channels and support for up to 4TB of RAM, delivering superior bandwidth and capacity.
  • Integrated I/O controller reduces data transfer latency and enhances overall system performance.
  • An optimized balance of compute, memory, I/O, and security to significantly reduce the total cost of ownership (TCO) for data centers.

Speed Beyond Expectations

  • Supports up to 24 hot-swappable 2.5-inch NVMe SSDs, each with speeds of up to 32Gbps, dramatically improving data processing and responsiveness for critical workloads.
  • Designed for future-proofing cloud computing, big data, and AI-driven applications, setting new standards for data-driven services.

High Efficiency and Reliable Safeguards

  • Equipped with 1600W 80Plus Titanium-grade redundant power supplies, ensuring over 96% conversion efficiency and reduced operational costs.
  • Designed with 1+1 redundant power supplies, providing continuous operation even if one module fails.
  • Features 4 intelligent cooling fans and dedicated airflow channels to ensure stable performance, even with 24 NVMe SSDs at full load.
     Designed by : Qifang
